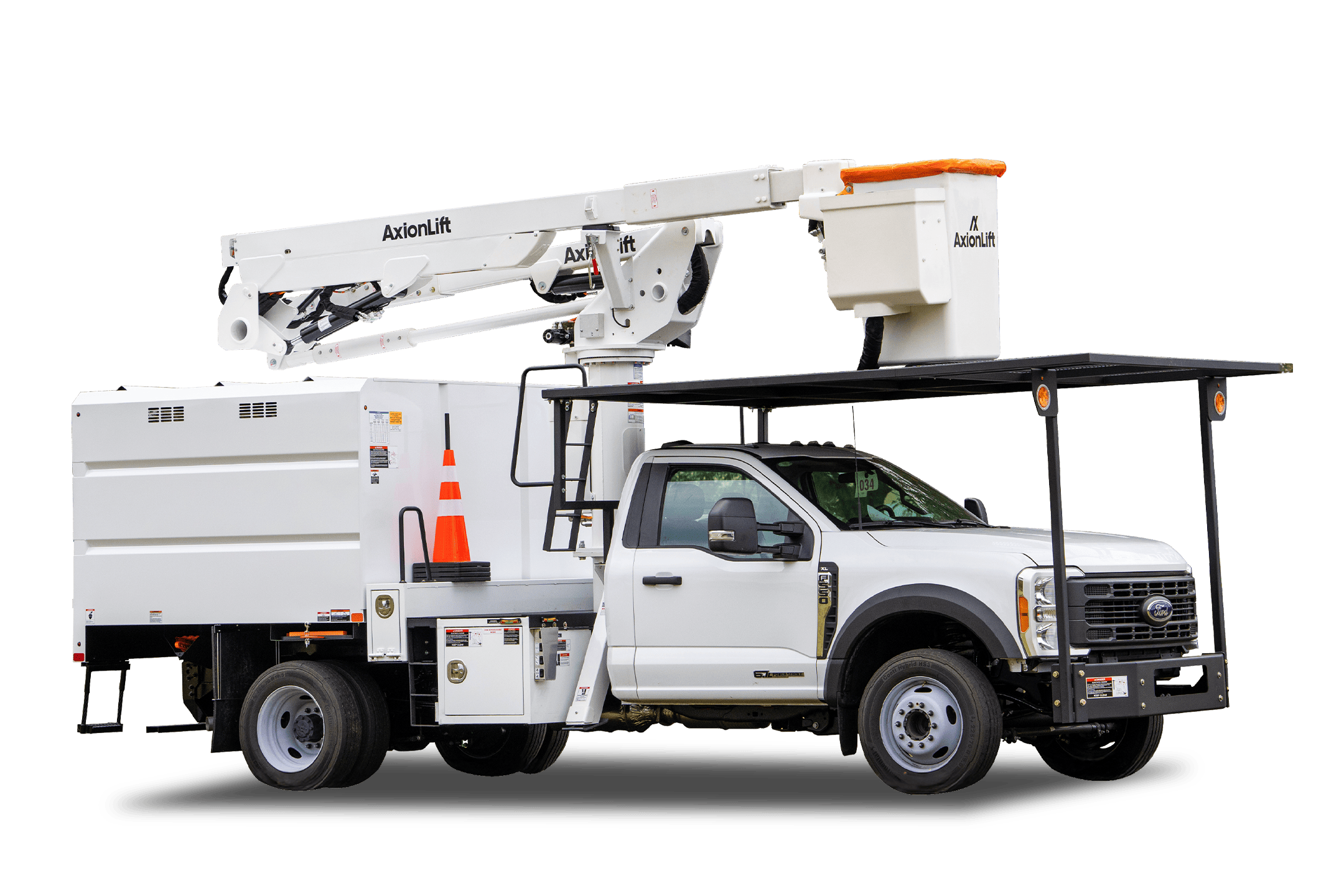

ATF40
Telescopic Articulating Aerial Lift

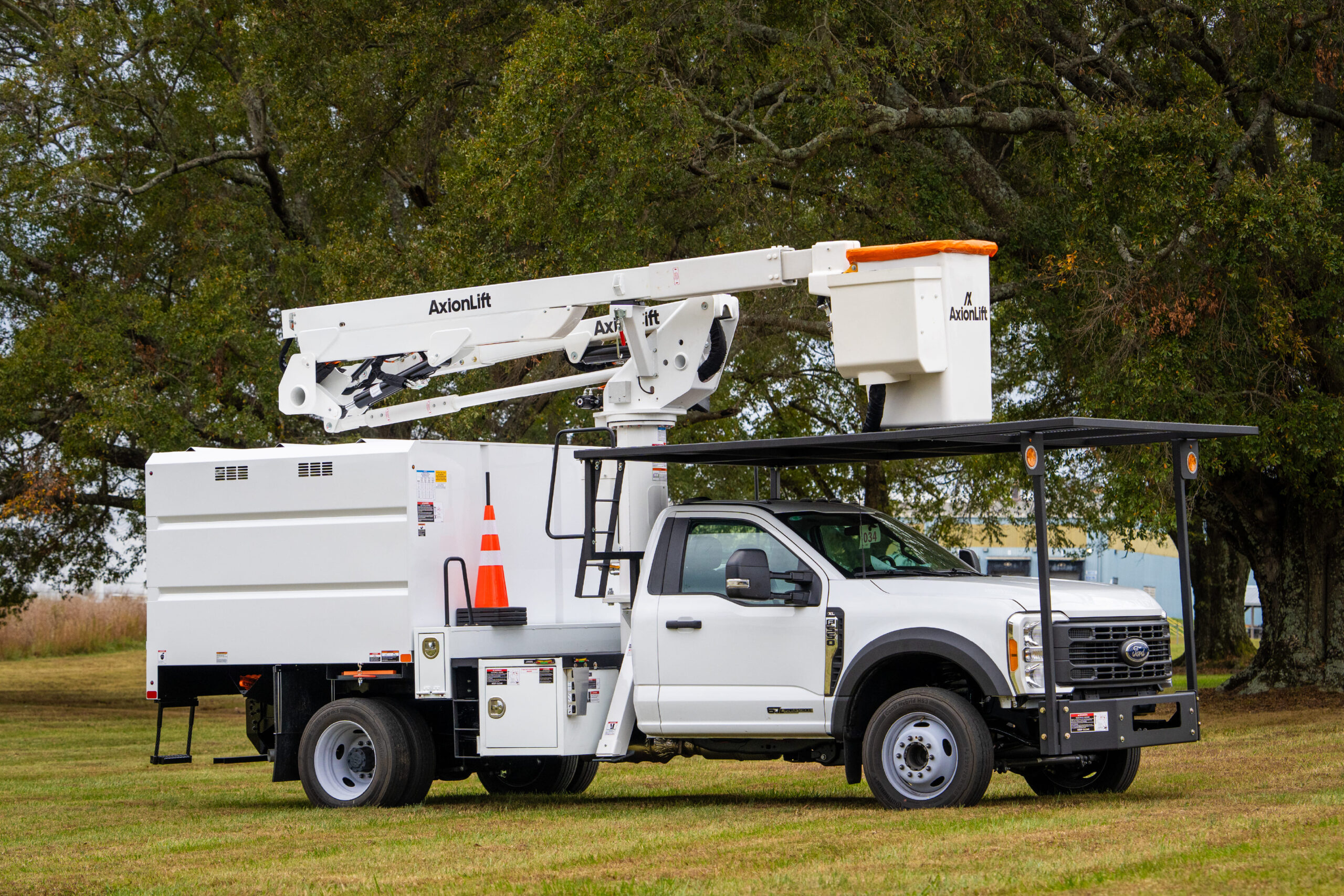

Built for tree care, the ATF40 combines maximum reach and rugged performance with an integrated chip box and tool storage. Mounted on a 550 series truck, it ensures efficient and streamlined field operations.
46.5 ft
Working Height
28.5 ft
Maximum Reach Overcenter
11.9 ft
Stowed Travel Height

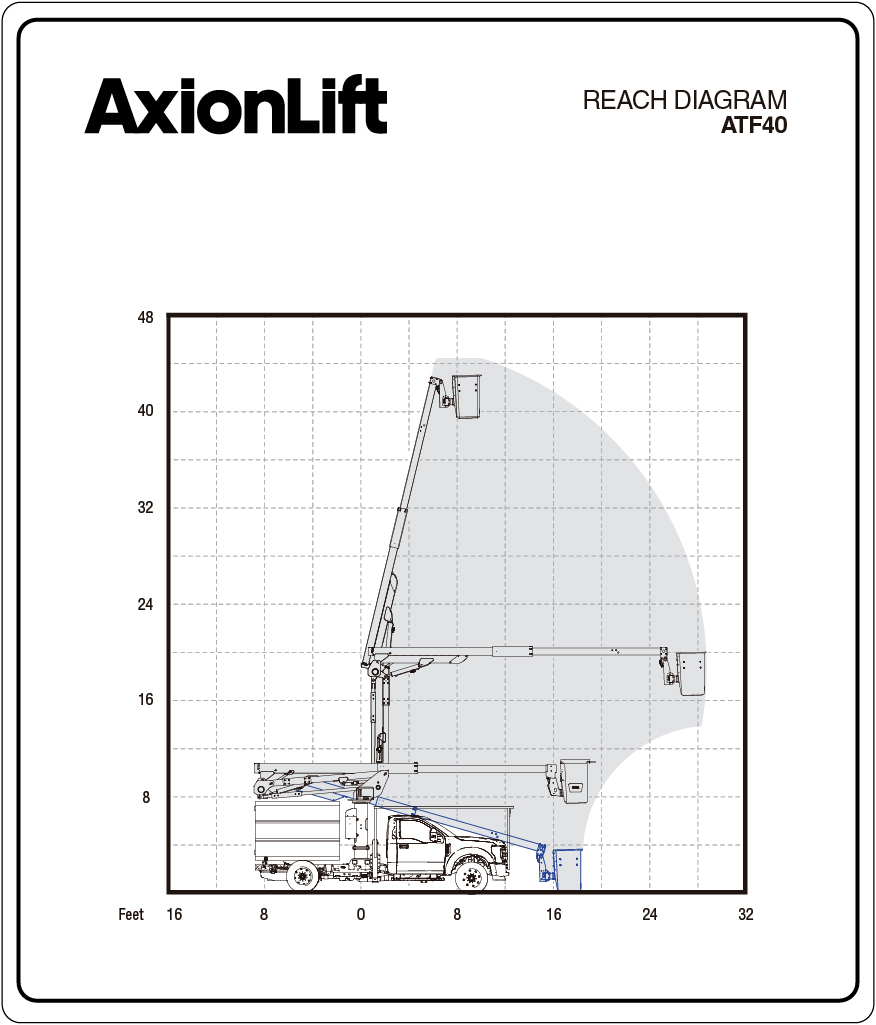

Reach Diagram
General Specification
Ground to bottom of the platform
41.5 ft
Working height
46.5 ft
Maximum side reach
28.5 ft
Stowed travel height
11.9 ft
Telescopic boom extension
116 in
Platform capacity
400 lb
Platform dimensions
24 x 30 x 42 in
Rotation
360º continuous infinite
