TCO60+10E
Articulating Overcenter Aerial Lift
Experience the reliability and performance of the AxionLift TCO60+10E— built to handle the most demanding tree-care jobs with ease. Engineered for strength and stability, the TCO60+10E delivers the confidence you need to take on every challenge.
75.1 ft
Working Height
47.0 ft
Maximum Reach Overcenter
12.9 ft
Stowed Travel Height

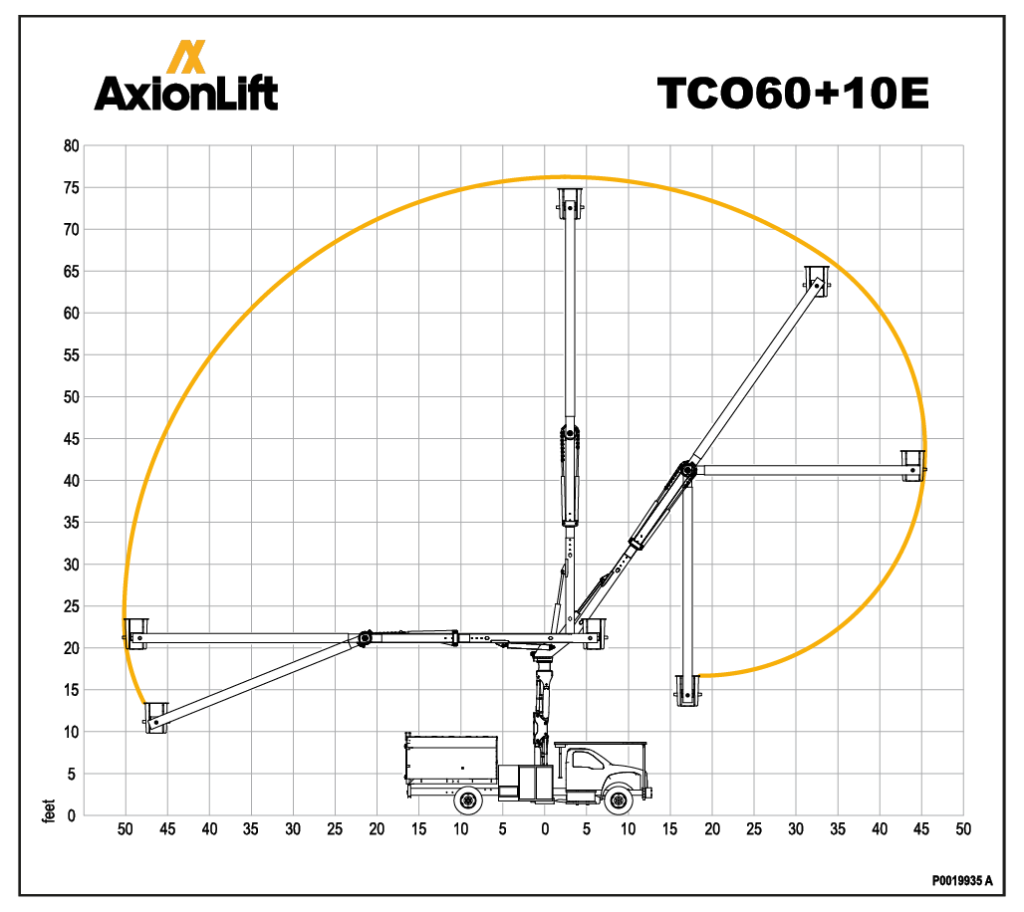

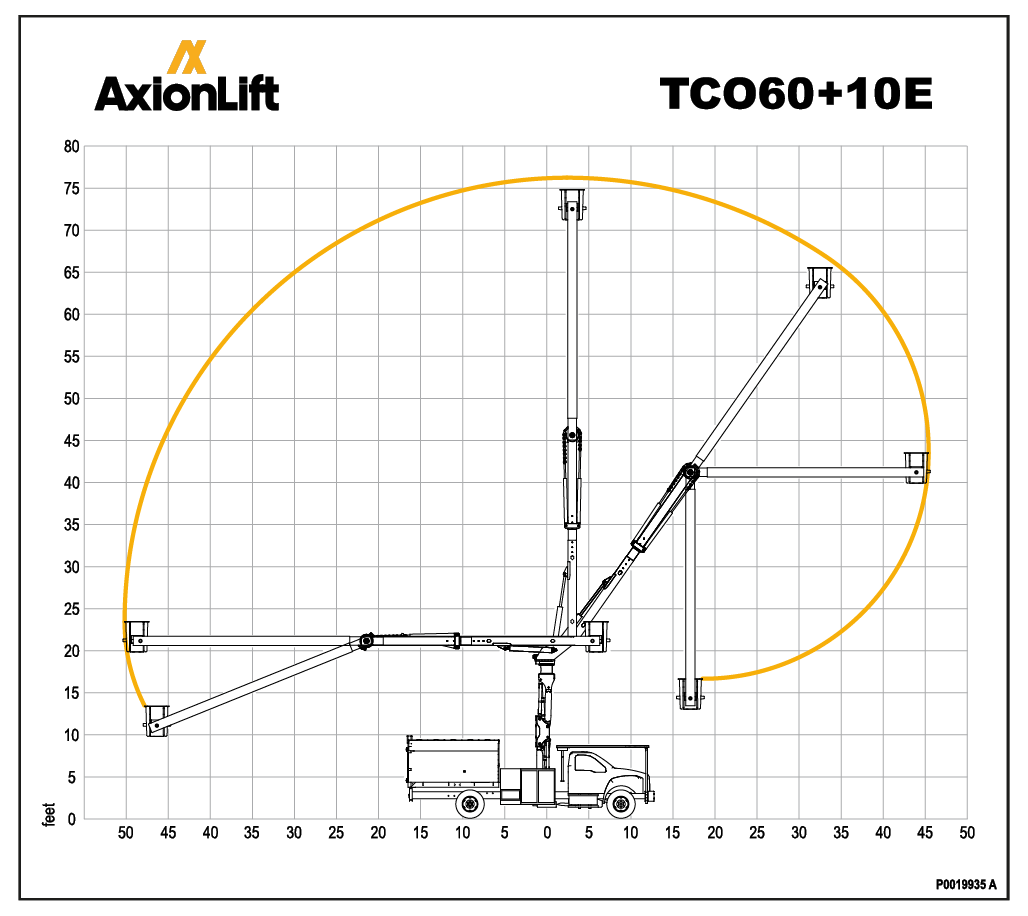

Reach Diagram
General Specification
Ground to bottom of the platform
70.2 ft
Working height
75.1 ft
Max reach from centerline of rotation
44.5 ft
Max reach upper boom non overcenter
41.7 ft
Stowed travel height
12.9 ft
Platform capacity
400 lb
Platform dimensions
24 x 24 x 42 in
Lower boom articulation
0º to 125º
Upper boom articulation
0º to 270º
Rotation
360º continuous infinite
AxionLift’s Tree Care Line supports the vital work of maintaining our communities’ well-being. Our equipment delivers the safety, efficiency, and reliability needed for tasks from line clearing to disaster response.
